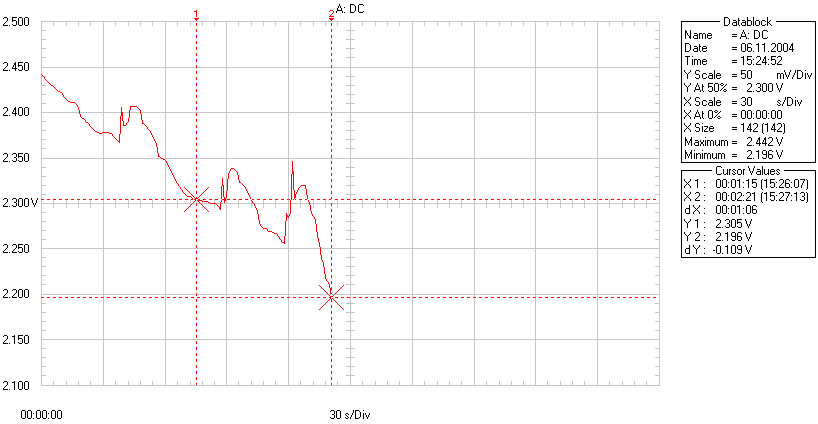

The above plot
shows ATS output at an air temperature of 10° and a water temp of 80°
but not quite
up to temerature as can be seen by the downward voltage trend. The peaks are
throttle blips which

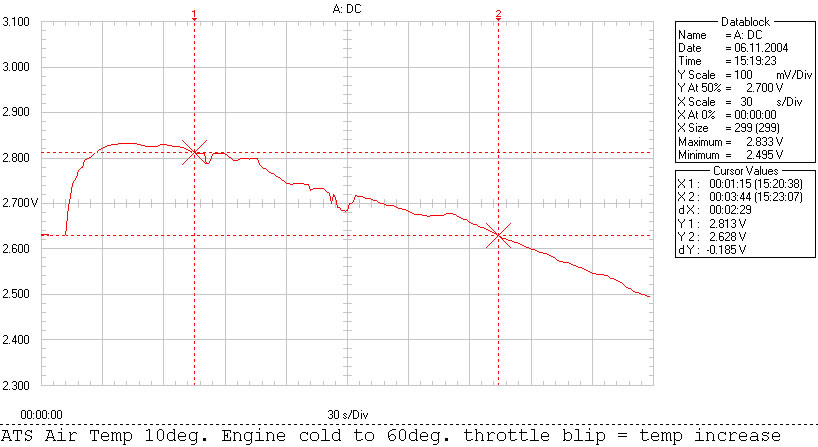

cause the air temperature to drop for a short period. When the engine is cold,
throttle blips have the
opposite effect see trend plot below.
