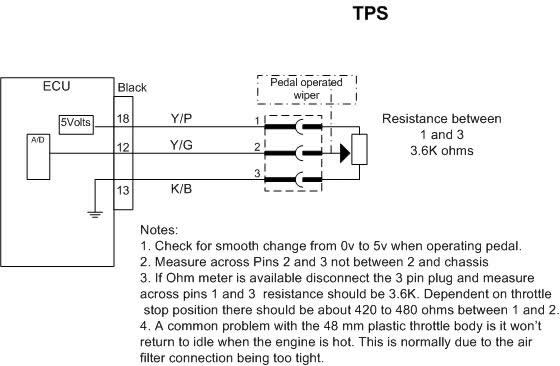

TPS (Throttle Position Sensor)

PIN
Colour
Tracer
Function
Signal
Destination
1
Y
P
ECU Supplied +5V
5v
 ECU(Black) Pin 18
2
Y
G
Throttle Pot Wiper Output to ECU
DC
ECU(Black) Pin 12
3
K
B
Sensor Ground Bus
0v
ECU(Black) Pin 13
