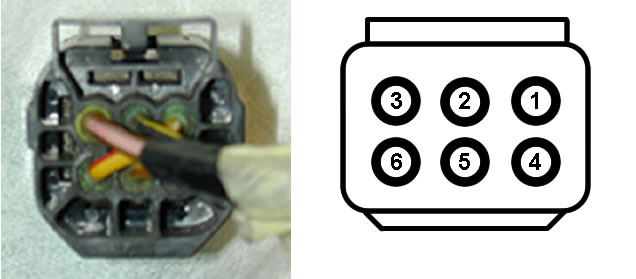

Injection Rail
PIN
Colour
Tracer
Function
Signal
Destination
1
Y
W
 Injector 3 (Gnd switched by ECU)
 DC
 ECU(Red) Pin 14
2
B
Y
 Injector 4 (Gnd switched by ECU)
DC
ECU(Red) Pin 35
3
N
K
ECU Controlled +12V
DC
 MFRU Pin 8
4
Not Connected

5
Y
N
 Injector 1 (Gnd switched by ECU)
DC
ECU(Red) Pin 12
6
Y
R
Injector 2 (Gnd switched by ECU)
 DC
ECU(Red) Pin 13
