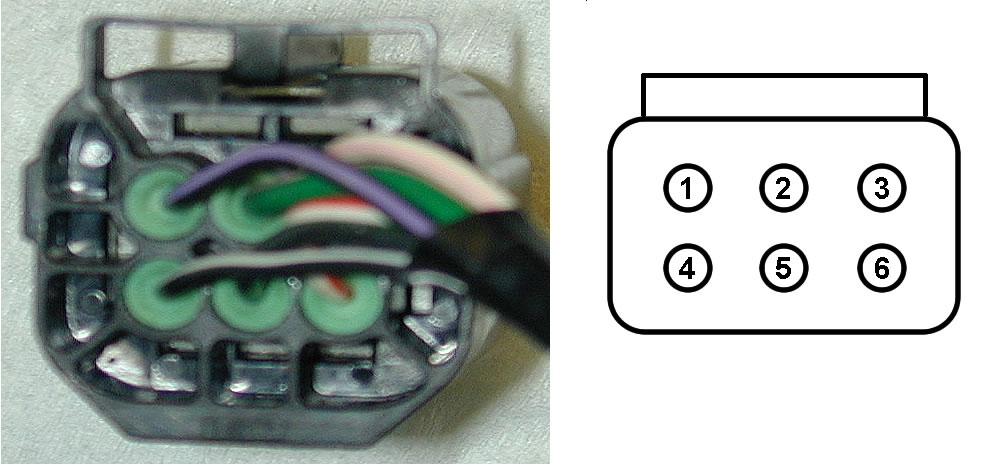

MFRU

PIN	Colour	Tracer	Function	Signal	Destination
1	B	P	Fuel Pump (GND Switched 0V = ON)	DC	ECU(Black) Pin 30
2	G	K	Ignition Switch On fuel relay(12V=ON)	DC	Loom connector 1 Pin 13
3	W	K	Main Relay (GND Switched 0V = ON)	DC	ECU(Black) Pin 22
4	B	W	GND for starter Relay	DC	Loom conn. 1 Pin 1 +GND
5	B	G	Lambda Heater (GND Switched 0V = ON)	DC	ECU(Black) Pin 20
6	W	R	Starter Rly. +12V from Ign. Switch Crank	DC	Loom connector 1 Pin 12

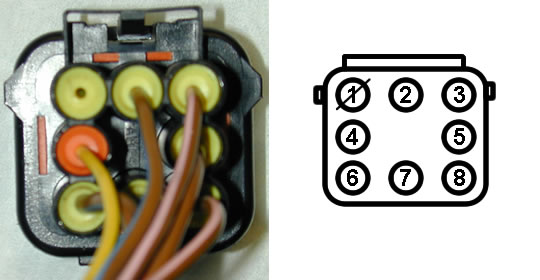

MFRU OUT
PIN	Colour	Tracer	Function	Signal	Destination
1			Not Used	-------
2	N	U	Lambda(OS) Heater +12V	DC	Lamda(OS) Pin 3
3	N	K	ECU Controlled +12V	DC	IACV,Inj,VVC,Loom,ECU Blk-27,Sprk1 cfsv
4	Y	G	Fuel Pump ON (+12V)	DC	Vehicle Loom 1 Pin 10
5	N	R	Starter Solenoid (+12V)	DC	Starter Solenoid
6	N	S	Perminent +12V (ECU FUSE) IN	DC	Via Purple wire to fuse ECU
7	N	S	Perminent +12V (ECU FUSE) IN	DC	Via Purple wire to fuse ECU
8	N	K	ECU Controlled +12V	DC	IACV,Inj,VVC,Loom,ECU Blk-27 ,Sprk1 cfsv
