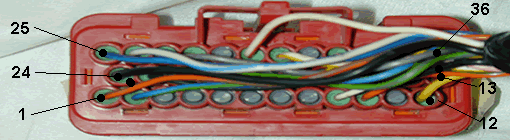

ECU RED Colour Tracer
Function
Signal
Destination
1
O
N
CPS Cam position sensor Sig.
I/P
CMP Pin 1
2
G
U
CPS Cam position sensor Com.
Ov
CMP Pin 2
3

4

5

6

7

8

9
W
B
Dashboard Tachometer Sig.
O/P
Loom Connector1 Pin2
10
O
G
IACV 1 (Gnd Switched at Idle)
O/P
IACV Pin 4
11

12
Y
N
Injector 1 (Gnd Switched)
O/P
Injector Plug Pin 5
13
Y
R
Injector 2 (Gnd Switched)
O/P
Injector Plug Pin 6
14
Y
W
Injector 3 (Gnd Switched)
O/P
Injector Plug Pin 1
15
O
U
IACV 2 (Gnd Switched at Idle)

O/P

IACV Pin 6
16
B

GND (Ground)
0v

17
Y
O
Charcoal Canister Purge Valve(CSFV)
O/P
Purge Plug Pin 2
18

19

20

21

22

23
B

Crank. Position Sensor Screen
0v

24
B

GND (Ground)
0v

25
U
P
Crank. Position Sensor Sig.
I/P
CPS Pin1
26
W
U
Crank. Position Sensor Com.
0v
CPS Pin2
27
S

Oxygen Sensor(Lambda) Sig.
I/P
OS Pin 2
28
G
S
Oxygen Sensor(Lambda) Com.
0v
OS Pin1
29

30
W
O
Vehicle Speed (Not Used)
I/P
 Loom Connector 1 Pin 6
31
W
Y
Data Link (Diagnostics)
I/PO/P
Loom Connector 2 Pin 1
32

33
K
B
IACV 3 (Gnd Switched at Idle)
O/P
IACV Pin 1
34
O
S
IACV 4 (Gnd Switched at Idle)
O/P
IACV Pin 3
35
B
Y
Injector 4 (Gnd Switched)
O/P
Injector Plug Pin2
36
