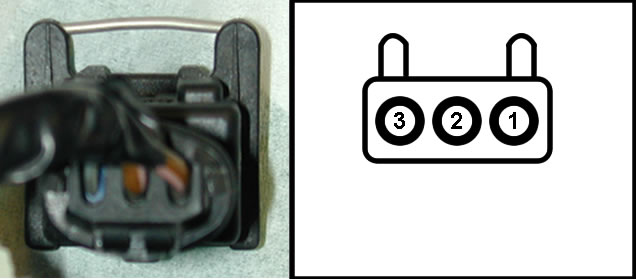

Spark Plug Connector 1

PIN	Colour	Tracer	Function	Signal	Destination
1	K	N	ECU Controlled +12V out to Spark 2	DC	Spark Plug Con. 2 Pin 1
2	N	K	ECU Controlled +12V	DC	MFRU Out Pin 8
3	S	W	ECU Control Spark Trigger (GND Sw.)	DC	ECU(Black) Pin 25
