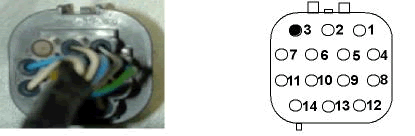

Vehicle Loom 1


>
PIN
Colour
Tracer
Function
Signal
Destination
1
 B
W
 Ground From Dashboard
 GND
MFRU Input Pin 4 +GND
2
W
B
Tacho Signal to Rev Counter
TTL
ECU (Red) Pin 9
3

 Not Used

4
 G
 U
 Temperature Gauge
 DC
 Sender Unit on Water Rail
5
 S
 U
 Cooling Fan Not Used
 --------
 ECU(Black) Pin 28
6
 W
 O
 Vehicle Speed Not Used
 --------
 ECU (Red) Pin 30
7
 U
 S
 Immobilizer I/P
 TTL
  ECU(Black) Pin 17
8
 N
 Y
Ignition Light
DC
Alternator +D Terminal
9
 G
 N
 Oil Temperature Not Used
 --------
 Blanked Off
10
Y
G
Fuel Pump Supply (+12V = ON)
DC
MFRU Output Pin 4
11
 W
 N
 Oil Pressure Gauge
 DC
 Sender Unit Oil Filter Assy.
12
W
R
Ign. Key Cranking Position (+12V=ON)
DC
MFRU Input Pin 6
13
G
K
Ign. Key On Position (+12V=ON)
DC
MFRU Input Pin 2 and ECU(Black)Pin33
14
G
Y
Not Used
--------

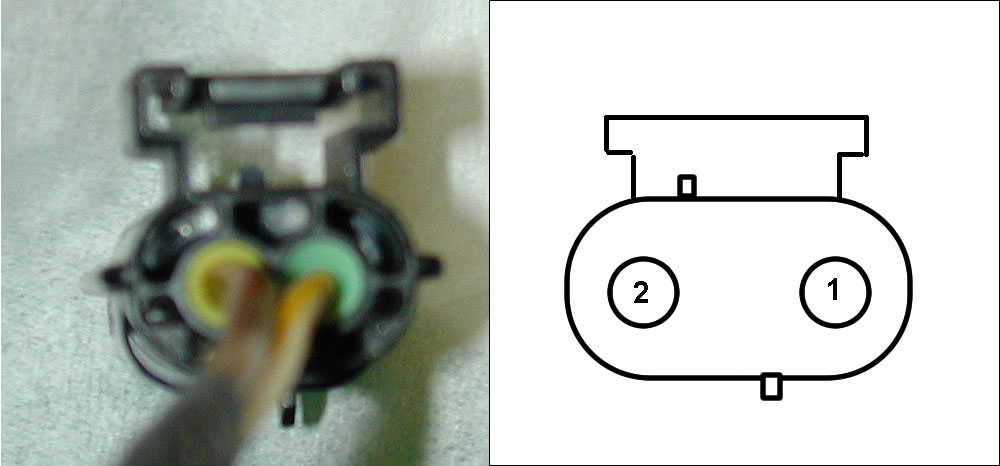

Vehicle Loom 2
PIN Colour Tracer
Function
Signal
Destination
1
W
Y
Data Link (Diagnostics)
I/PO/P
ECU (Red) Pin 31
2
N
K
Switched +12V
DC
MFU Pins 3/8
